| YN-SV3014S60 |
| LED/M |
Power |
Voltage |
Width |
Lumen |
CRI |
CCT |
Warranty |
Waterproof Grade |
| 60 |
6w/m |
12/24V |
8mm |
450lm/m |
80-97 |
1800-7500K |
3 years |
IP20/IP67 |
| YN-SV3014S84 |
| LED/M |
Power |
Voltage |
Width |
Lumen |
CRI |
CCT |
Warranty |
Waterproof Grade |
| 84 |
8.4w/m |
24V |
10mm |
630lm/m |
80-97 |
1800-7500K |
3 years |
IP20/IP67 |
| YN-SV3014S120 |
| LED/M |
Power |
Voltage |
Width |
Lumen |
CRI |
CCT |
Warranty |
Waterproof Grade |
| 120 |
12w/m |
12/24V |
8mm |
910lm/m |
80-97 |
1800-7500K |
3 years |
IP20/IP67 |
| YN-SV3014S156 |
| LED/M |
Power |
Voltage |
Width |
Lumen |
CRI |
CCT |
Warranty |
Waterproof Grade |
| 156 |
15.6w/m |
24V |
8/10mm |
1120lm/m |
80-97 |
1800-7500K |
3 years |
IP20/IP67 |
Features:
1. Background Color(FPCB): Yellow, White, Black .

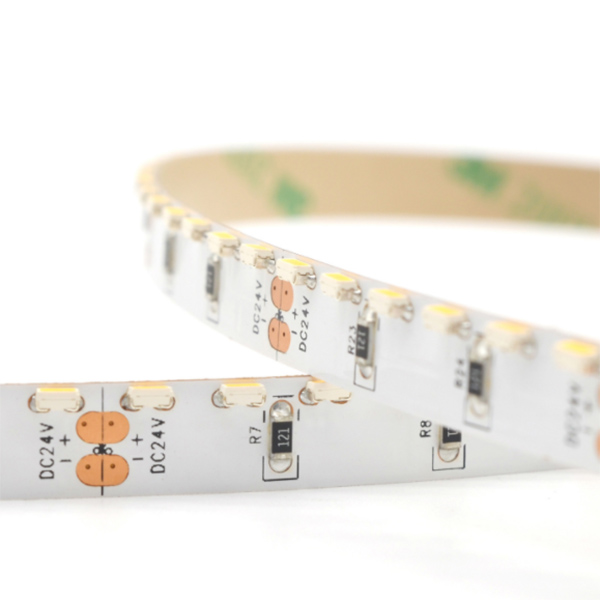

2. Cuttable length: by every 3 leds for DC12V type and every 6 leds/cut for DC24V type.
3. Waterproof grade are available for IP20 (Non-waterproof), IP65(Silicon surface), IP67(Silicon Tube), IP68(Silicon Tube+Injection).
4. DC connector and waterproof connector are also available, the strip can be connect to desktop power supply easily.
5. 3M tape on the back for convenience of installation.
6. CE, RoHS, ETL Certificate.
Application:
Our led flex strip can be mounted on windows, archways, canopies or corridors for architectural lighting.
It is also suitable for decorative lighting in holidays, exhibitions etc.
