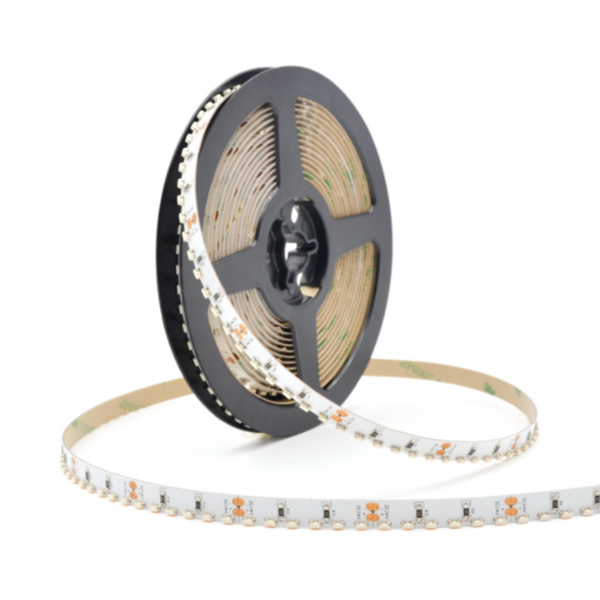

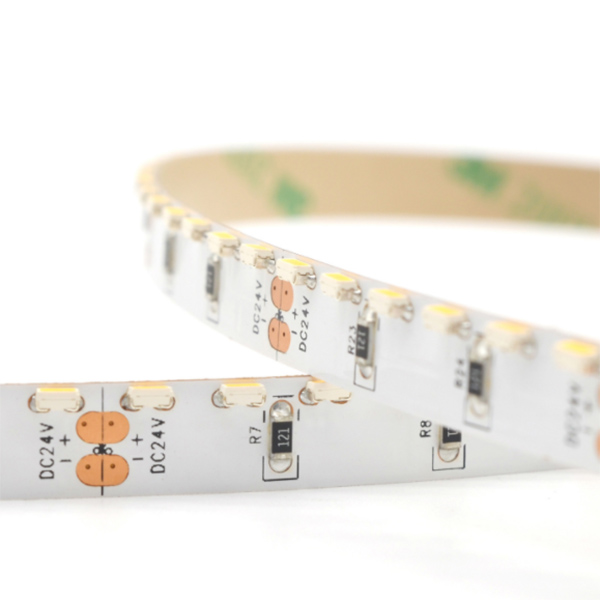

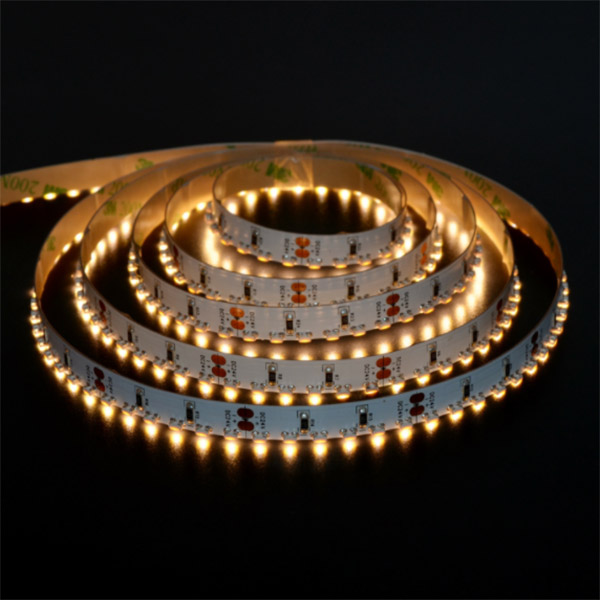

3014 Side View Flex LED Strip

YN-SV3014S60
LED/M Power Voltage Width Lumen CRI CCT Warranty Waterproof Grade
60 6w/m 12/24V 8mm 450lm/m 80-97 1800-7500K 3 years IP20/IP67



YN-SV3014S84
LED/M Power Voltage Width Lumen CRI CCT Warranty Waterproof Grade
84 8.4w/m 24V 10mm 630lm/m 80-97 1800-7500K 3 years IP20/IP67



YN-SV3014S120
LED/M Power Voltage Width Lumen CRI CCT Warranty Waterproof Grade
120 12w/m 12/24V 8mm 910lm/m 80-97 1800-7500K 3 years IP20/IP67



YN-SV3014S156
LED/M Power Voltage Width Lumen CRI CCT Warranty Waterproof Grade
156 15.6w/m 24V 8/10mm 1120lm/m 80-97 1800-7500K 3 years IP20/IP67

Features:
1. Background Color(FPCB): Yellow, White, Black .
2. Cuttable length: by every 3 leds for DC12V type and every 6 leds/cut for DC24V type.
3. Waterproof grade are available for IP20 (Non-waterproof), IP65(Silicon surface), IP67(Silicon Tube), IP68(Silicon Tube+Injection).
4. DC connector and waterproof connector are also available, the strip can be connect to desktop power supply easily.
5. 3M tape on the back for convenience of installation.
6. CE, RoHS, ETL Certificate.
Application:
Our led flex strip can be mounted on windows, archways, canopies or corridors for architectural lighting.
It is also suitable for decorative lighting in holidays, exhibitions etc.
